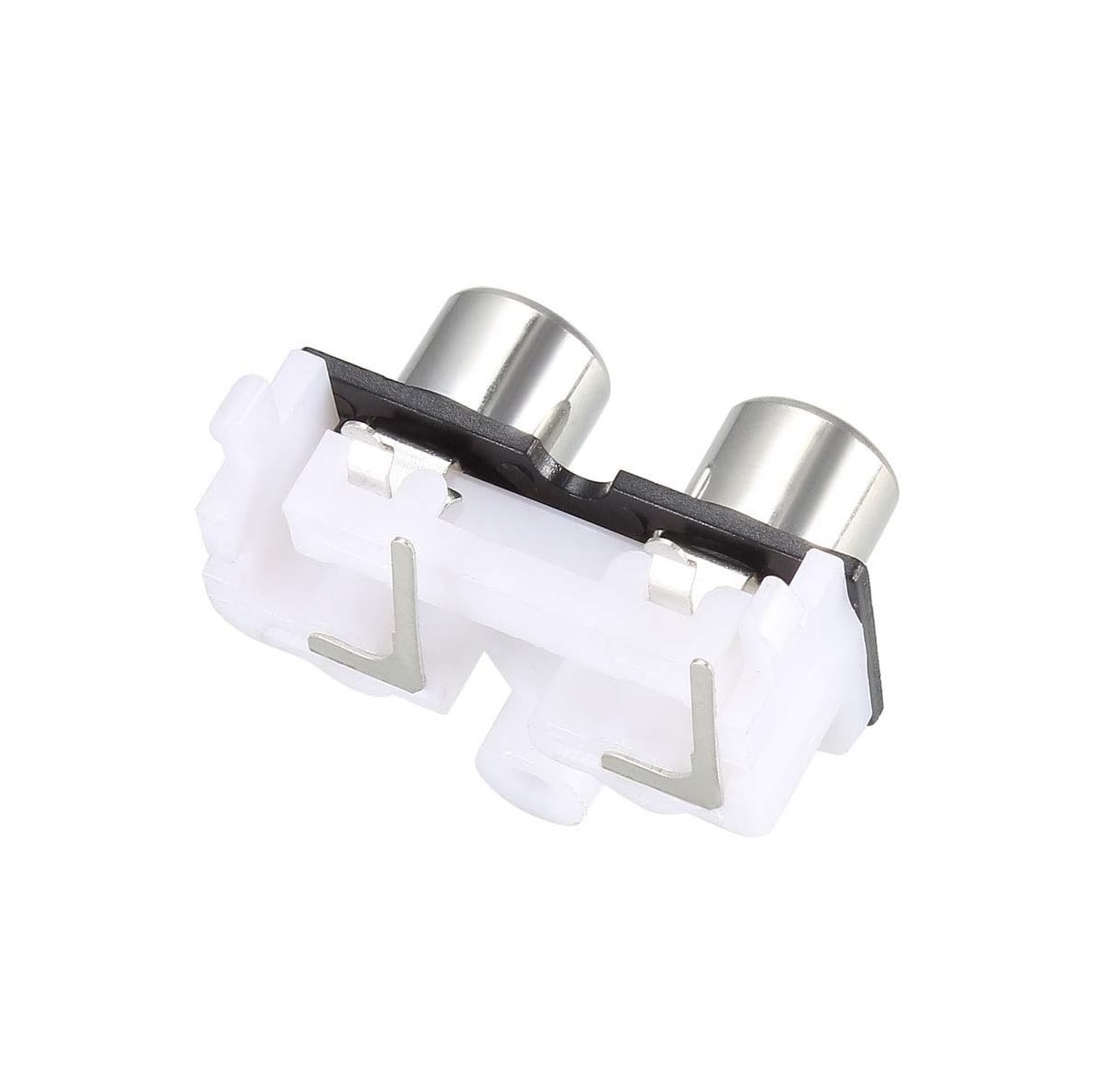

Product Name: RCA Socket

Model Number: AV2-10

Material: Plastic, Metal

Rated Voltage: 50V

Rated Current: 0.5A

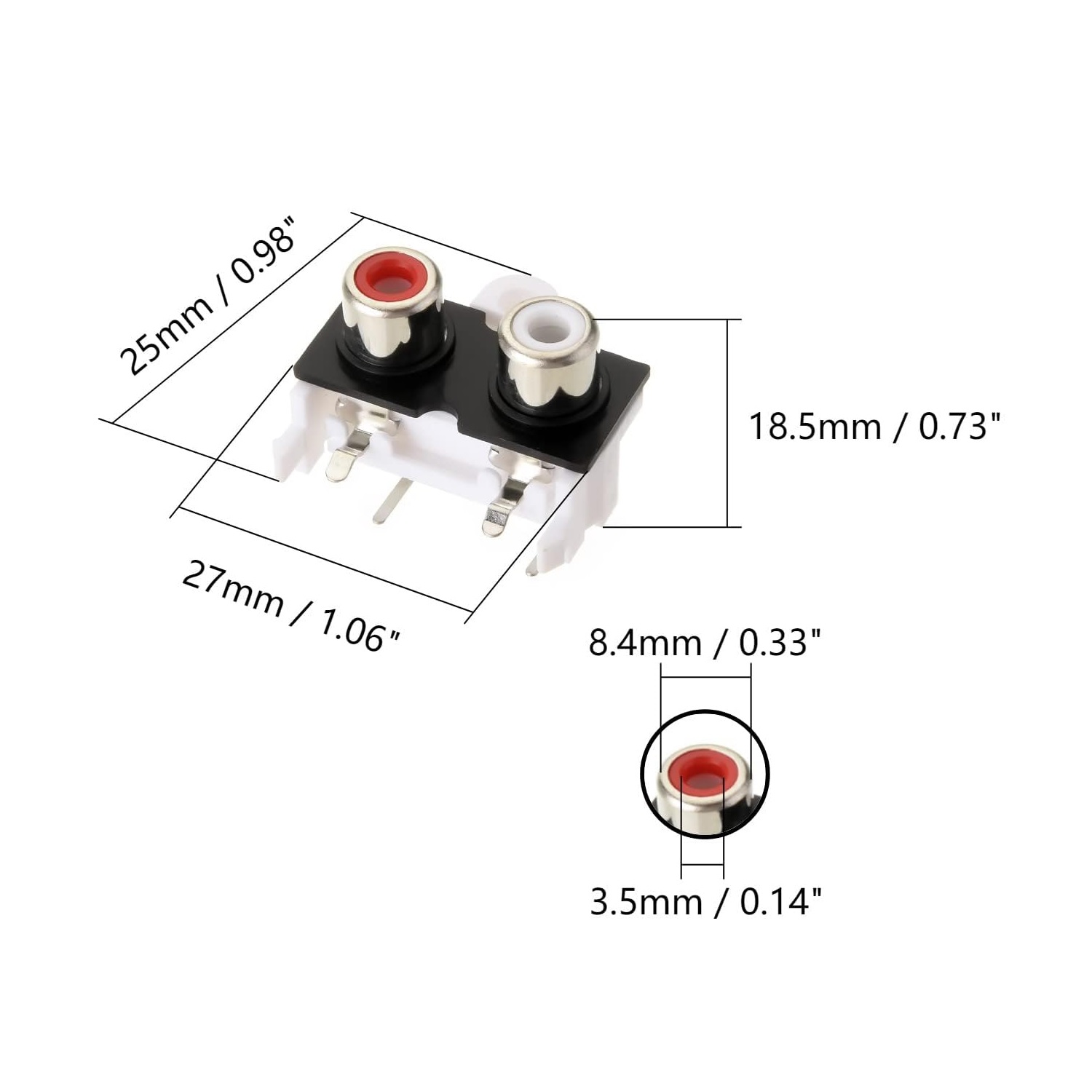

Diameter: 8.4mm

Number of Pins: 4

Installation Method: Board mounting

Number of Holes: 2

Description:

1. Transmits audio signal in analog way. Connects to a variety of audio devices Red end for right voice and white for left voice Sends left and right signals of stereo audio at low loss. We want many people to know the joy of high quality sound at a lower price.

2. The RCA chassis socket has easy insertion and is difficult to fall off, and the number of times is more than 5000 times. The hot side (center pin) is designed to bite from 4 directions to provide a stable contact.

3. The GND side can be soldered directly without the ring to prevent sound degradation. We recommend this product not only for the performance of your own machine, but also for those who want a beautiful finish. Designed for high sound quality. Even if you are not experienced you can experience the enjoyment of audio without any hassle.

4. Widely used in audio equipment, video equipment, etc. The panel mount can be mounted on a variety of electrical devices such as TVs, DVDs, computers, speakers, etc.
