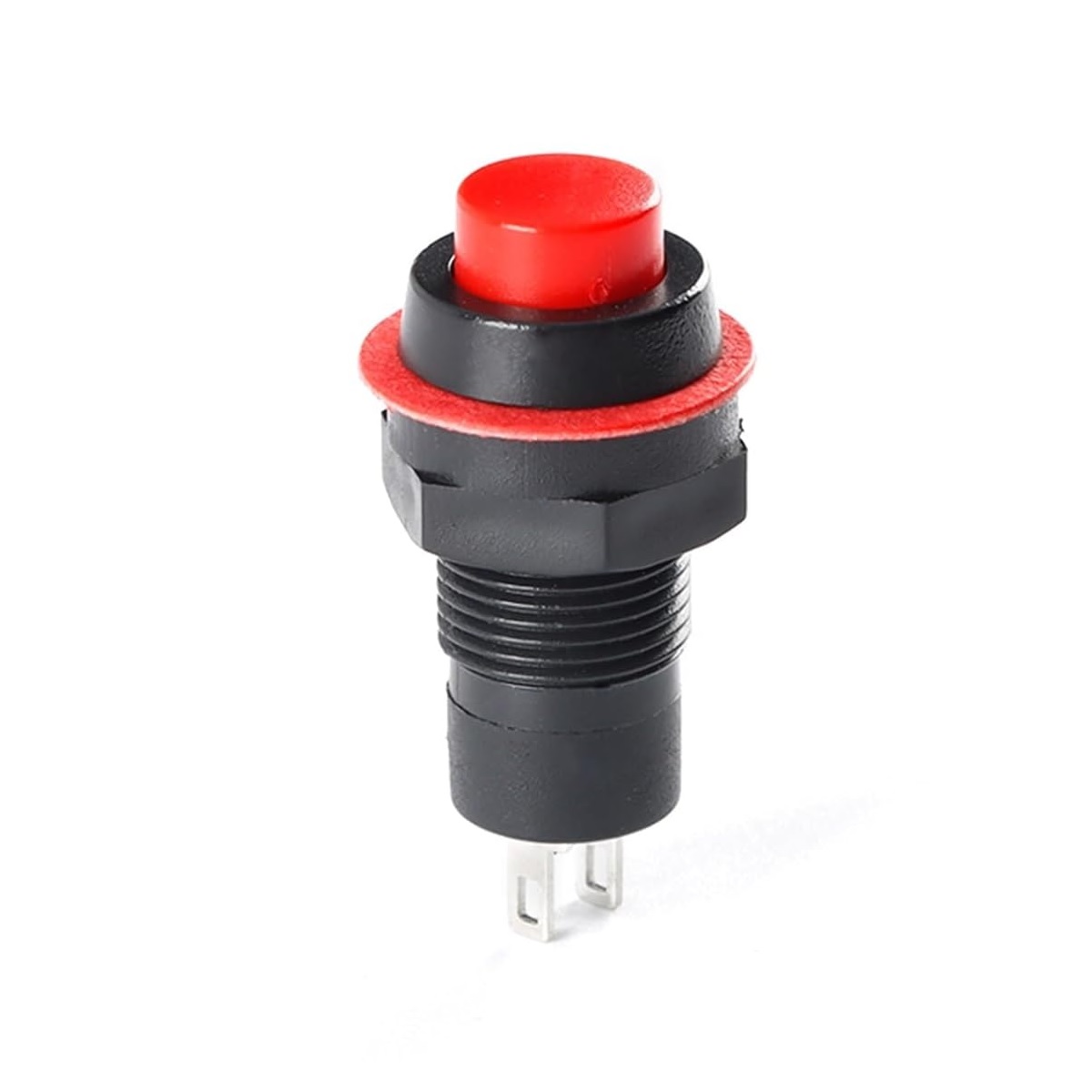

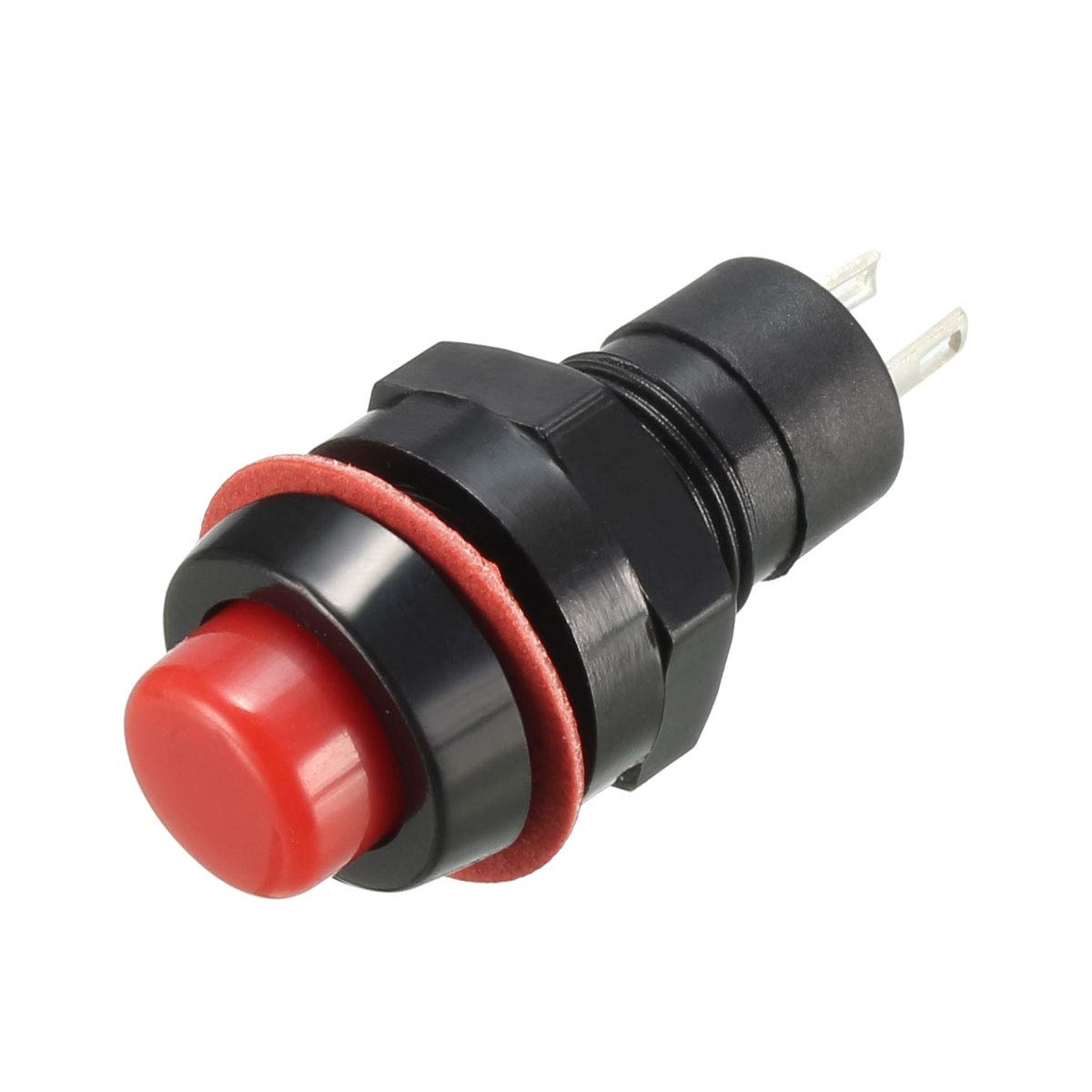

کلید فشاری مهره خور 2 پایه 10mm – DS211 قرمز
کلید فشاری گرد 10 میلی متری و 2 پین فلزی رنگ قرمز و کیفیت مرغوب
مدل مهره دار و 250 ولت 1.5 آمپر 250V/1.5A مدل DS-211
به صورت یک بار فشار ON و یک فشار OFF و قفل شو
عمر مفید بالای 100 هزار بار فشار و با پایه مس ضخیم
دارای مهره و واشر آچارخور پلاستیکی و رنگ قرمز
>> این محصول با دو کد DS211 و DS213 و با دو رنگ قرمز و مشکی شناخته می شود.
** این محصول کلید می باشد. یعنی با یک بار ضرب زدن قفل شده و با ضربه دوم آزاد می شود.
—————————————-
DS-211/ DS-213، 10mm Panel Mount Momentary Push Button Switch – Red
Momentary Push Button Switch (Panel Mount Push Button)-3A This is a normally open button 3A 125V Momentary Push Button Switch OFF-ON Horn Plastic Red. A push-button switch is a small, sealed mechanism that completes an electric circuit when you press on it. Featured by Sharvi Electronics When it’s on, a small metal spring inside makes contact with two wires, allowing electricity to flow. When it’s off, the spring retracts, contact is interrupted, and the current won’t flow. This product is known as red Button SPST 1NO Momentary Pushbutton Switch, SPST Momentary Panel Mount Push Button Switch, Momentary SPST NO Round Push Button Switch, 12 mm Dia Pushbutton Switch, Momentary Push Button Switch.
Feature/Specs:
- Part No: DS-211
- Material: plastic and metal
- Operating Voltage: UP to 250V
- Current Rating: 3A @125V
- Contacts configuration: SPST
- Switch method: Pushbutton
- Switch Contact Type: Normally Open (N.O)
- Mounting Type: Panel Mount
- Leads: Solder lugs
- Color: Red
- Dimensions: in mm
- Diameter: 10 mm
- Height: 30.5 mm
- Approx Weight: 7 gm
