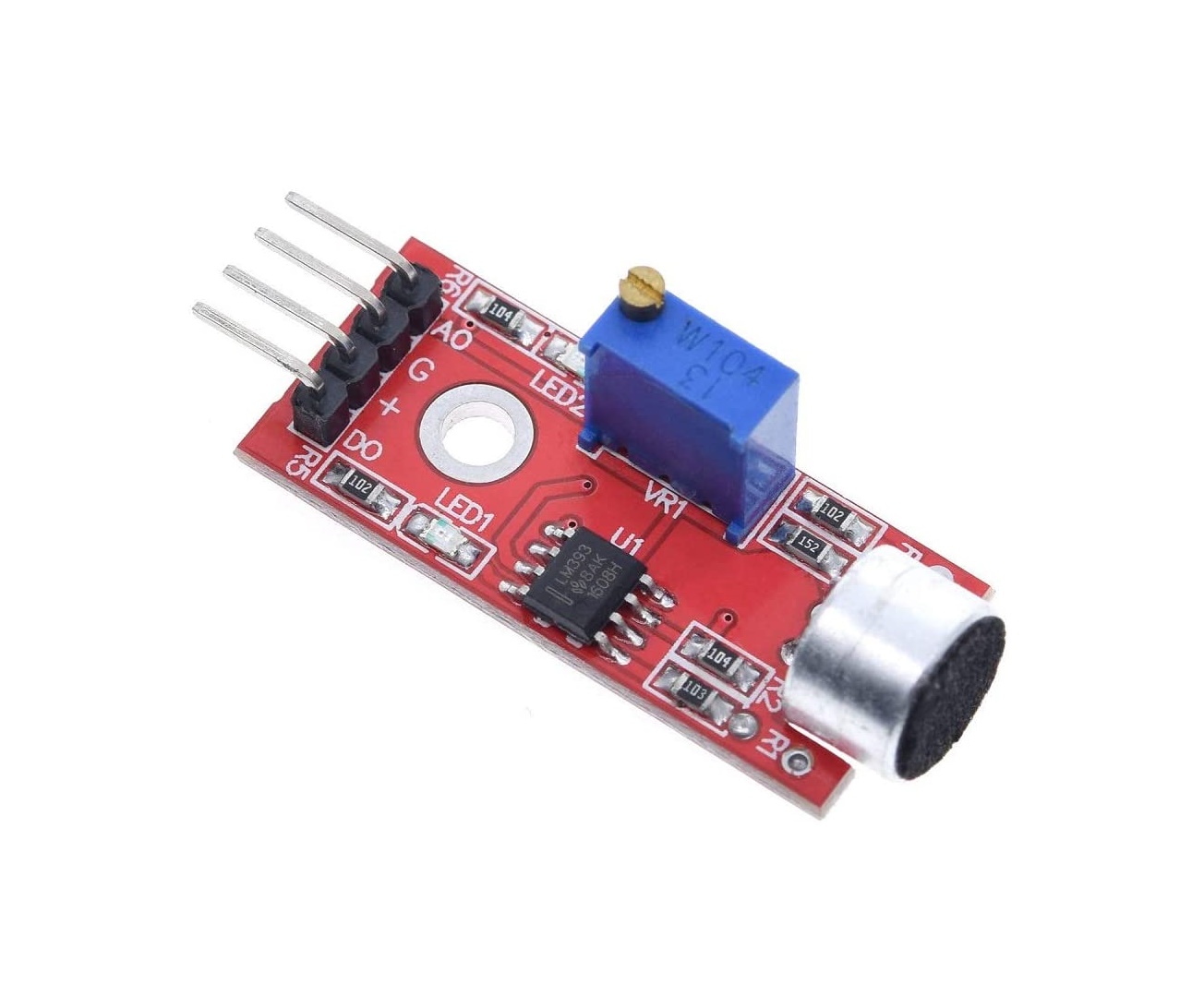

ماژول شدت صوت KY-037 :
قابلیت تبدیل سیگنال صوتی به سیگنال دیجیتال و آنالوگ را دارد.
ماژول تشخیص صدای میکروفون KY-037 صداهای بلند مانند کوبیدن درها را تشخیص می دهد همچنین این ماژول دارای خروجی آنالوگ و دیجیتال است بنابراین سنسور توسط هر میکروکنترلری می تواند آماده شود.
مشخصات :
- دارای تشخیص صدا با حساسیت بالا برای Arduino PIC AVR
- از منبع تغذیه 5 ولت DC استفاده می کند.
- تراشه اصلی: LM393 ، میکروفون خازنی Electret
- AO : خروجی آنالوگ ، یک سیگنال ولتاژ خروجی ارائه می دهد که به شما برای اندازه گیری شدت صوت نیز کمک می نماید.
- DO : خروجی دیجیتال ، زمانی که شدت صدا به آستانه می رسد ، خروجی بالا می رود.
- برای تنظیم سطح آستانه DO می توان از پتانسیومتر داخلی استفاده کرد.
Product description
Features:
Microphone Sensor High Sensitivity Sound Detection Modules for A-rduino PIC AVR

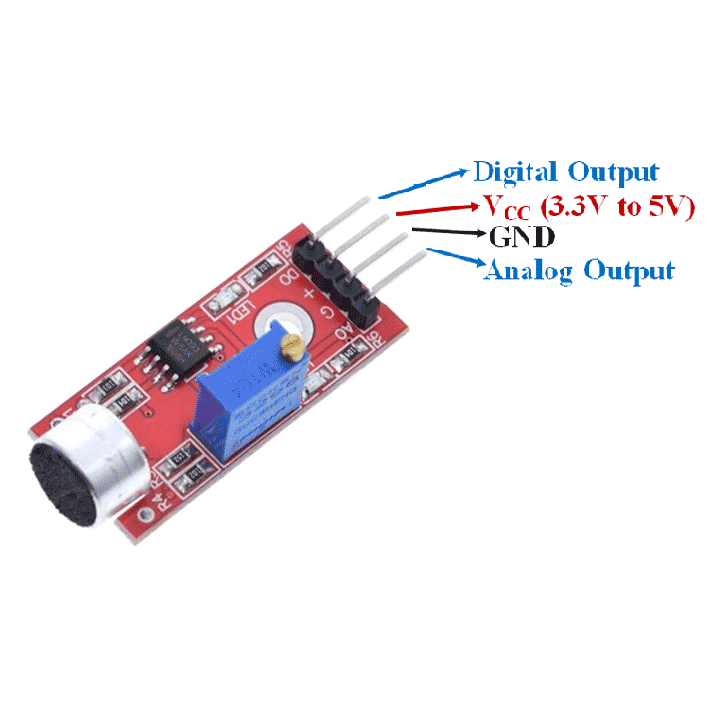

For sound detection module has two outputs:
AO, analog output, real-time output voltage signal of the microphone
DO, when the sound intensity reaches a certain threshold, the output high and low signal
Module features:
There is a mounting screw hole 3m
The use 5v DC power supply
With analog output
There are threshold level output flip
High sensitive microphone and high sensitivity
A power indicator light
The comparator output is light
There is a mounting screw hole 3mm
Main chip: LM393, Electret condenser microphone
Working voltage: DC 4-6V
Signal output indication; Single channel signal output
High sensitive microphone and high sensitivity
برچسب: ماژول سنسور صوت KY-037 ماژول میکروفن KY-037 آردوینو ماژول میکروفن خازنی KY-037
