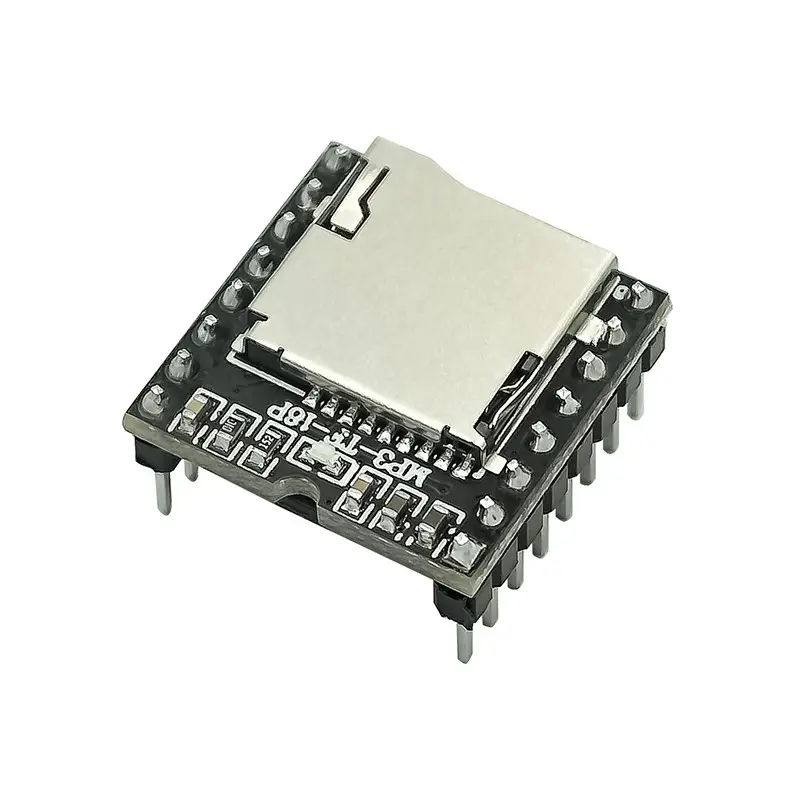

ماژول MP3 Player مینی DFPlayer پخش فایل های MP3

With this mini MP3 module from DFRobot you can play various music formats and have this controlled by an Arduino, for example. The music to be played can be put on an SD card and the built-in amplifier makes playback easy with only the need of a small speaker. The module can be controlled digitally via UART, but possibly also with a combination of buttons and resistors (see the information link at the bottom of this page).

Specifications:

• Supply voltage: 3.2 – 5V DC
• Signal voltage: 3.2 – 3.3V
• Communication:
  • Interface: UART
  • Baud rate: 9600
• MP3:
  • Supported audio files: MP3, WAV and WMA
  • Supported sample rates: 8/11,025/12/16/22.05/24/32/44.1/48kHz
  • DAC resolution: 24 bit
  • Equalizer modes: 6 (normal/pop/rock/jazz/classic/base)
  • Volume: Digitally adjustable (30 steps)
  • Maximum power per channel: 3W
  • Number of channels: 1
• SD card adapter:
  • Format: MicroSD
  • Maximum capacity: 32GB
  • Supported disk formats: FAT16 or FAT32
  • Maximum number of supported folders: 100
  • Maximum number of audio files per folder: 255
• Dimensions PCB: 20 x 20mm

Package contents:

• 1x DFRobot DFPlayer Mini

See the following page for more information: DFPlayer Mini

Note: The microSD card is not accessible via the serial connection.
