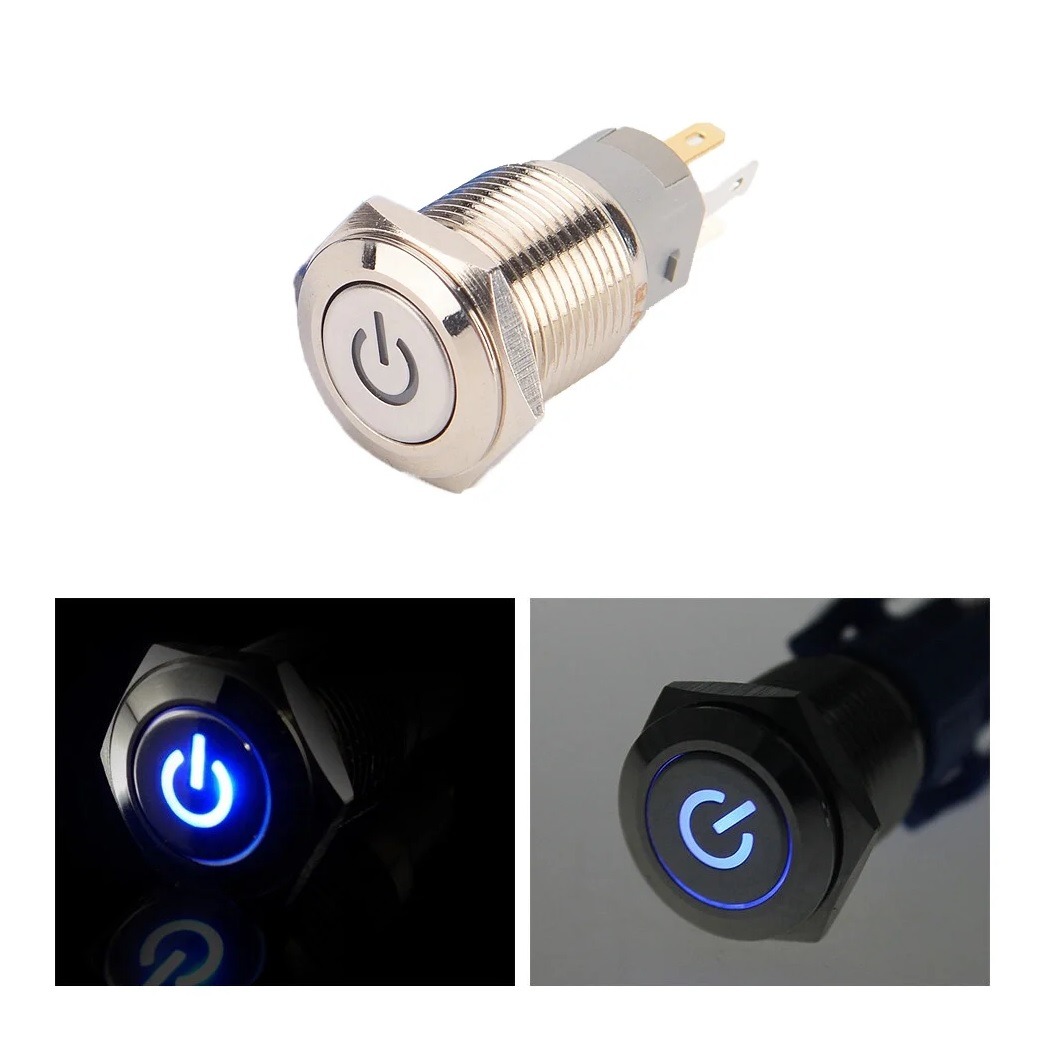

کلید فشاری استیل آبی LED دار قطر 12V/24V – 16mm طرح پاور

سوئیچ پوش باتون فشاری (push) سایز 16 میلی متری تمام استیل گرد فلزی

کیفیت بالا و مرغوب، بدنه ضدآب و ضدزنگ با طراحی زیبا اتصال دائمی

کلید آسانسوری مهره خور فلزی رنگ بدنه نقره ای و رنگ چراغ LED آبی

دارای 5 پایه تمام مس و یک مهره فلزی و واشر پلاستیکی

ولتاژ 12 ولت و 24 ولت و جریان 6 آمپر ماکزیمم 12V/24V – 6A

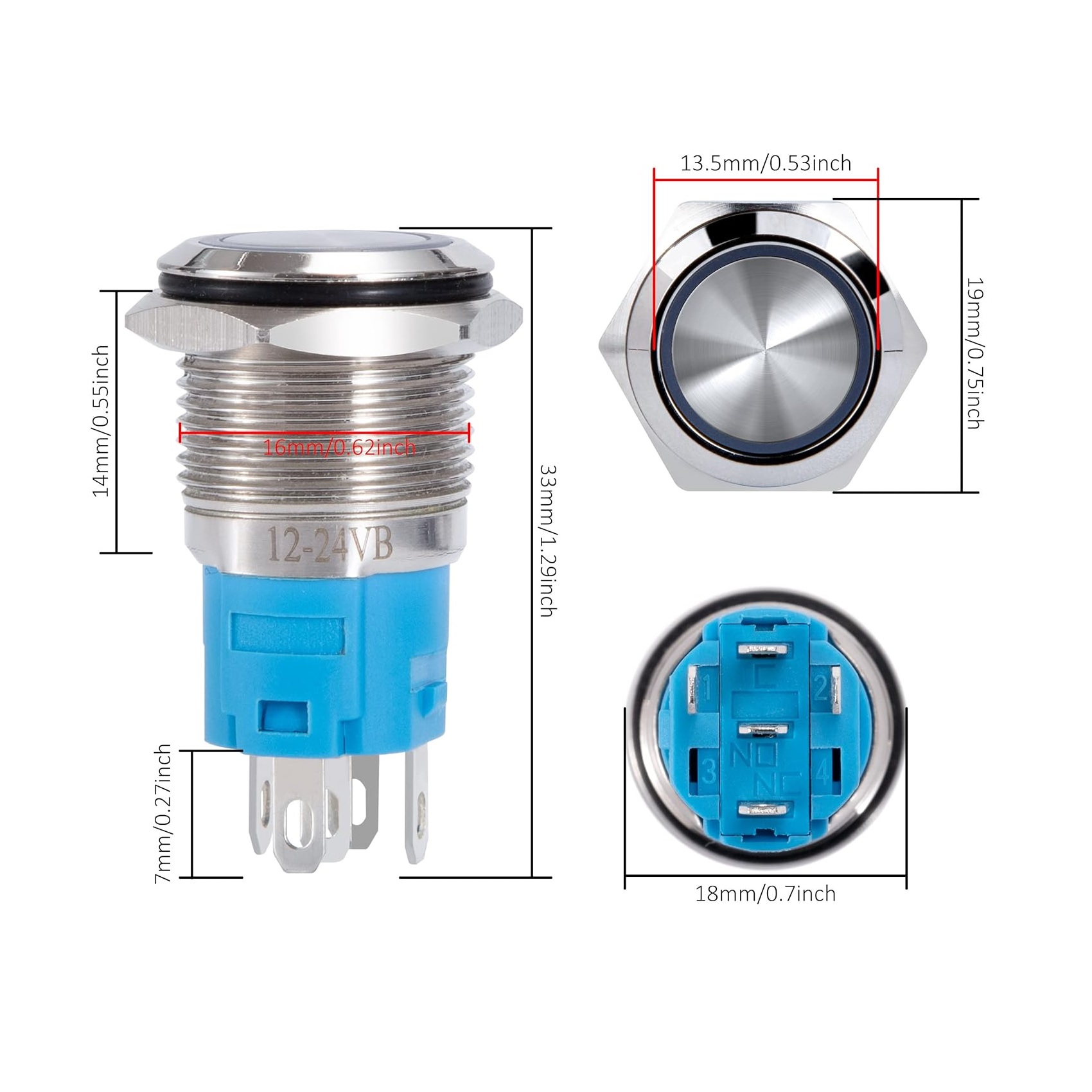

>> ابعاد دقیق قابل مشاهده در تصاویر محصول – پارت نامبر : hsc16f-11e/j/n

** این محصول کلید می باشد. یعنی با یکبار زدن قفل و با فشار دوباره آزاد میشود

————————————–

>> 16mm Metal Latching Push Button Switch, 5 Pin DC 12V/24V SPDT Self-Locking Round Waterproof Switch with BLUE LED Light for Car RV Truck Marine Boat

>> About this item

• Latching Push Button Switch: 16mm Panel mounting hole size, 14mm push button diameter, Push: Power ON, Release your finger: Power OFF. Lifetime up to 100,000 cycles, enough for a long time use.
• Sturdy and Durable: Our push button switch made of Chrome Plated Brass with PA66 nylon base, rust and corrosion resistance, good flame retardancy and insulation, stable and durable, easy to maintain.
• Waterproof and Dustproof: Pressure switch equipped with hexagon nut and O-shaped waterproof ring, offer IP65 and IK08 protection, heat resistance, freely used in the wet or dusty environment.
• Easy to Install: No welding required, Just pass the wire through the screw hole at the bottom of the switch and fix it with a rotating thread. Blue LED light can be on constantly or instantaneously, depending on your connection method.
• Wide Application: Widely used in cars, trucks, ships, ignition systems, home doorbells and switch panels. Ideal for circuit control in electromagnetic starters, contactors, relays and other circuits.

1. Stainless steel material for long-term use
2. Inbuilt Colorful Ring illumination LED
3. Available in Various LED Color
4. Bright daylight LEDs
5. Single pole push to make and Push to break Function
6. Front and rear panel seal to IP67 & TVS protection
7. Rubber ring and hexagon nut to fix, Waterproof and Dustproof

About this item

• Mounting hole size:16mm, 4 Copper Pin Switch. blue LED Light.
• Operation type Momentary: Pressing the button ON, Release the button OFF.
• Switch rating:2A/36VDC, LED can be ON all the time or only ON when switch is ON, depending on how you wire it.
• Switch LED max voltage: 12V (when the voltage is higher than 3V, you need to add external resistor.)
• Strong and durable, Degree of protection: waterproof IP67,IK08.
