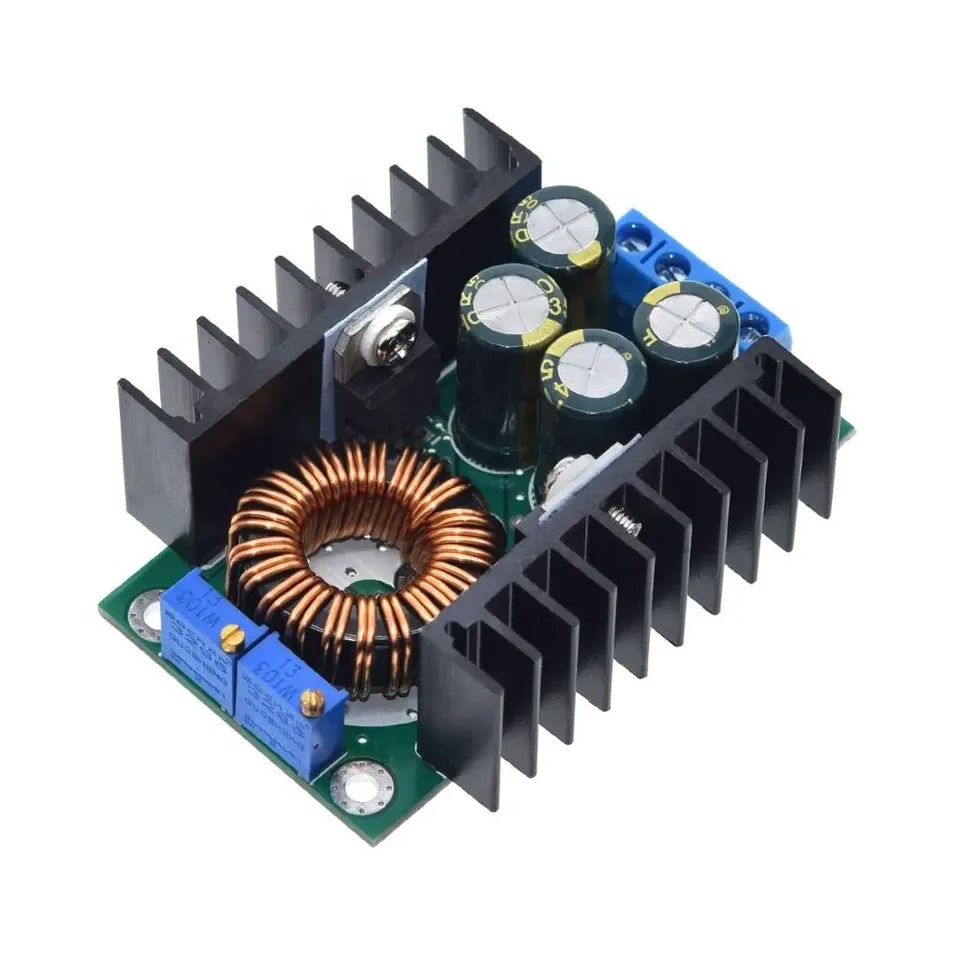

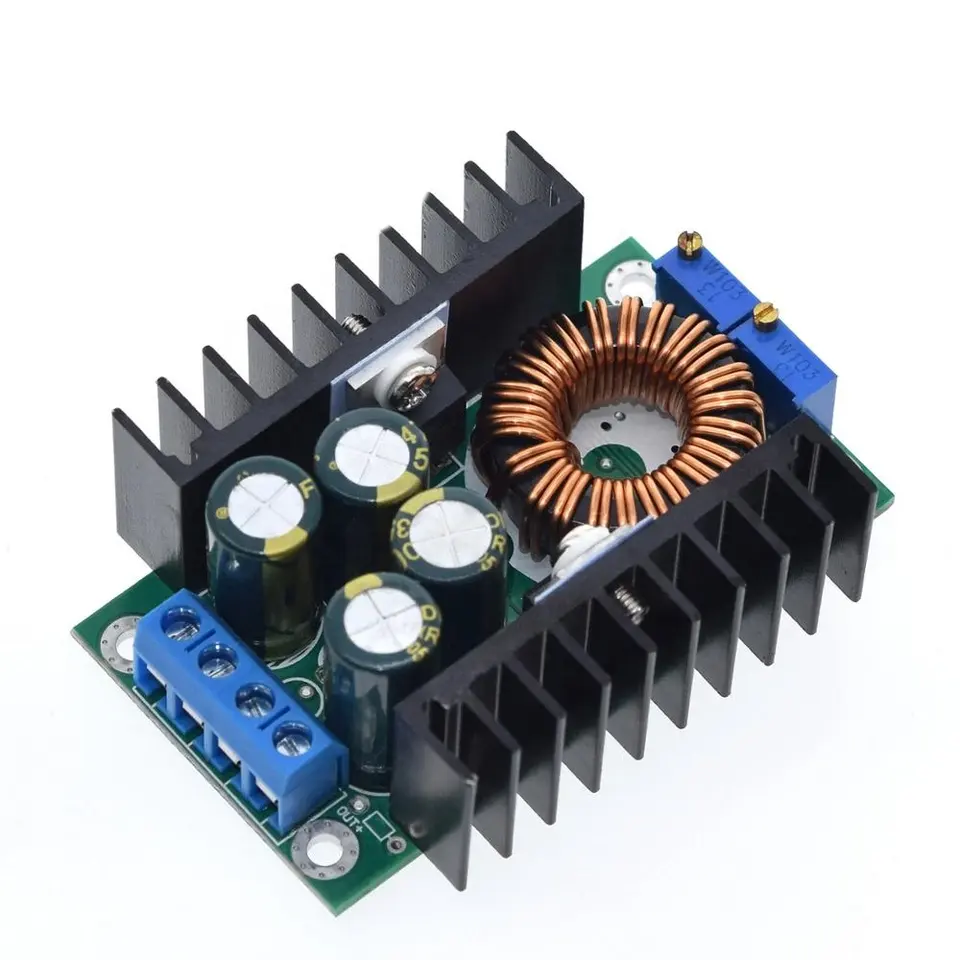

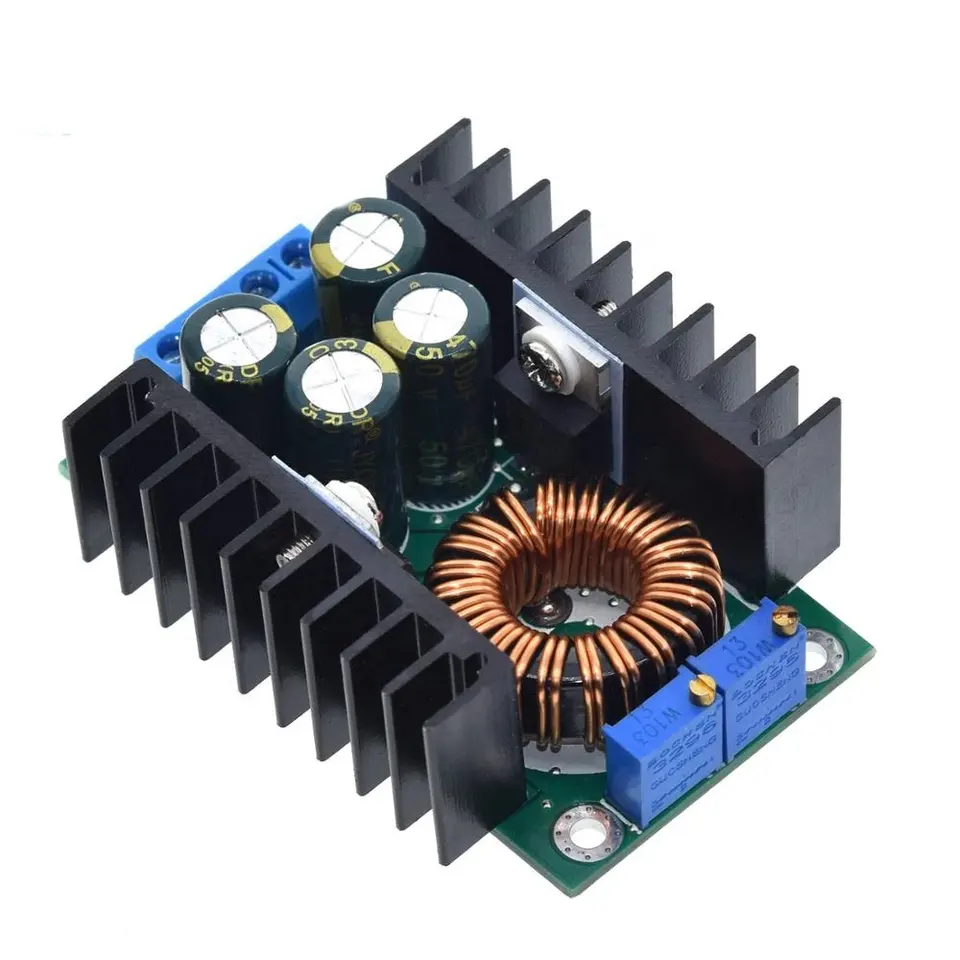

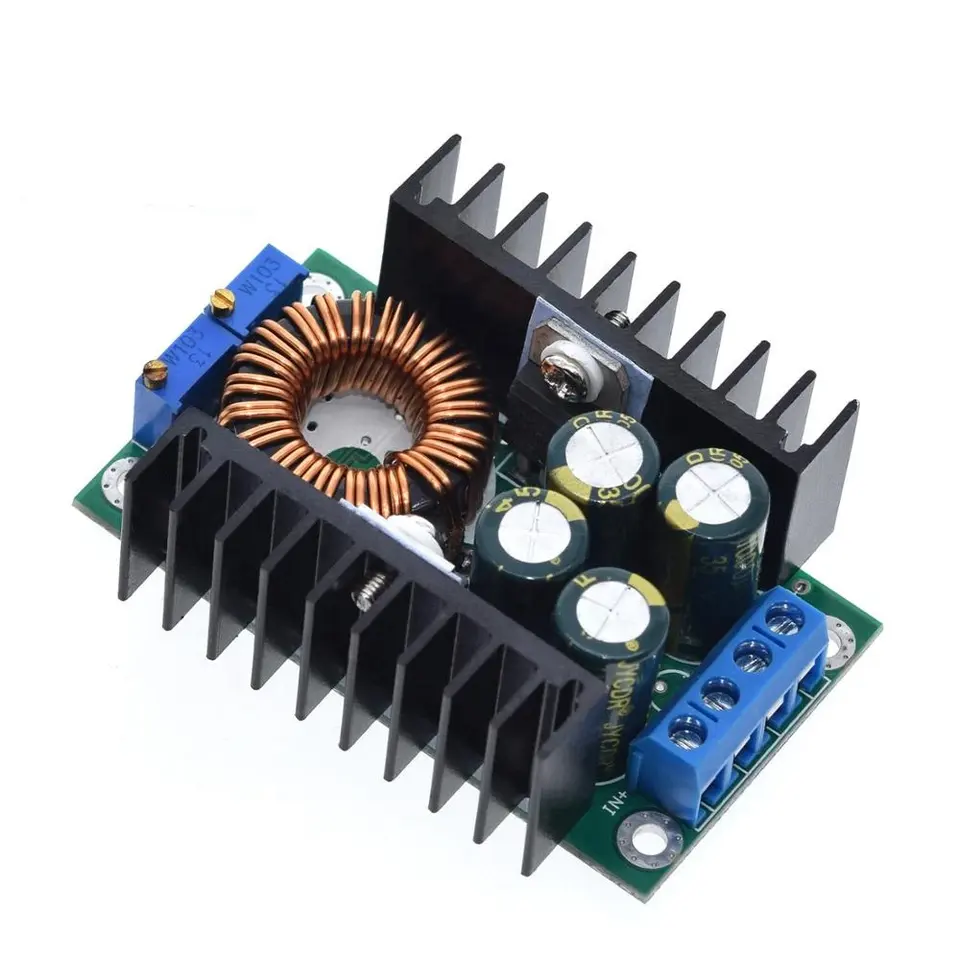

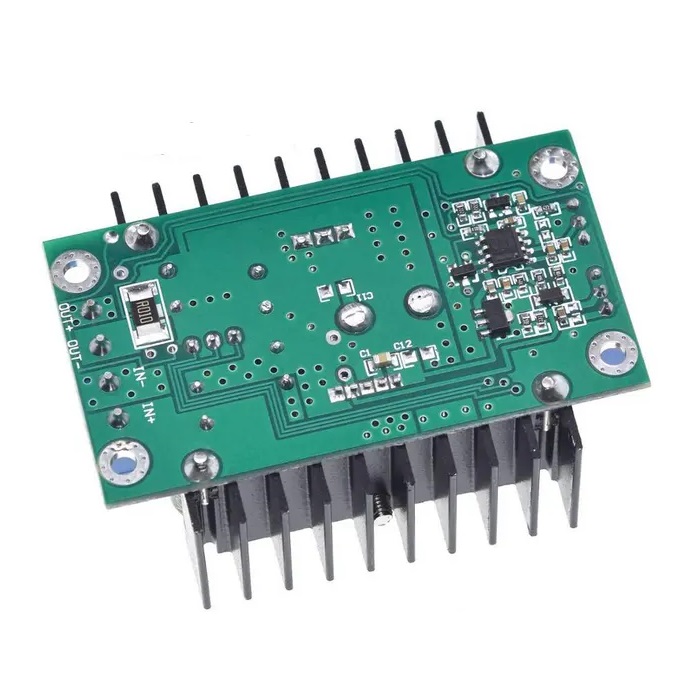

ماژول مبدل ولتاژ DC-DC کاهنده 10 آمپر XL4016
مدل Step Down Buck Converter XL4016
ویژگی ها :
1. جریان ثابت گام به گام غیر ایزوله، ماژول شارژ ماژول ولتاژ ثابت (CC.CV)
2. ولتاژ ورودی: 5-40 ولت
3. ولتاژ خروجی: (1) جریان مستقیم 1.2-35V به طور مداوم قابل تنظیم است. (2) خروجی ثابت: بین 1.2-35V ولت را انتخاب کنید
4. جریان خروجی: 10A (زمانی که دمای لوله برق از 65 درجه بیشتر شود، لطفاً فن خنک کننده اضافه کنید)
5. محدوده جریان ثابت: 0.2-10A (قابل تنظیم)
6. جریان لامپ را تغییر جهت بدهید: مقدار جریان ثابت * ( 0.1 ) ، اتصال جریان لامپ و مقدار ثابت را تغییر جهت بدهید.
مانند مقدار جریان ثابت 3A است، به نوبه خود جریان لامپ به یک جریان ثابت تنظیم شده است 0.1 بار (0.1 * 3A = 0.3A).
7. کمترین فشار: 1 ولت
8. توان خروجی: حداکثر توان حدود 300 وات است
9. راندمان تبدیل: تا حدود 95٪
10. فرکانس کاری: 300KHZ
11. ریپل خروجی: 20M پهنای باند
12. ورودی 24 ولت خروجی 12 ولت 5 آمپر ریپل حدود 50 میلی ولت (به استثنای نویز)
13. حفاظت از اتصال کوتاه خروجی: بله، جریان ثابت
14. حفاظت از قطبیت معکوس ورودی: هیچ
15. خروجی جلوگیری از جریان برگشتی: هیچ
16. سیم کشی: ترمینال
17. جریان بدون بار: 20 میلی آمپر معمولی (سوئیچ 24 ولت 12 ولت)
18. تنظیم بار: ± 1٪ (ثابت)
19. تنظیم ولتاژ: ± 1%
20. سرعت پاسخگویی پویا: 5% 200uS
21. جهت تنظیم پتانسیومتر: در جهت عقربه های ساعت (افزایش)، خلاف جهت عقربه های ساعت (کاهش)،
پتانسیومتر (CV) بسته به ولتاژ ورودی برای تنظیم ولتاژ استفاده می شود، پتانسیومتر (CC)
ولتاژ بسته به خروجی برای تنظیم جریان (CC) استفاده می شود
22. دمای عملیاتی: درجه صنعتی (-40 درجه سانتیگراد تا +85 درجه سانتیگراد) (لطفاً به استفاده واقعی توجه کنید
دمای لوله برق، حرارت با دمای بالا تقویت شده است)
23. نشانگر: نشانگر دو رنگ، چراغ نشانگر شارژ قرمز است، چراغ سبز به معنی شارژ کامل است
(بدون بار سبز است)
24. اندازه (تقریبا): 65 × 47 × 22 میلی متر (طول x عرض x ارتفاع)
25. دقت جریان و دمای ثابت: در آزمایش واقعی، دمای ماژول از 25 درجه
تا 60 درجه، تغییر مقدار جریان ثابت کمتر از 5٪ است (مقدار جریان ثابت 5A)
26. حفاظت از اتصال کوتاه خروجی: بله، جریان ثابت (مقدار جریان ثابت تنظیم فعلی)
27. حفاظت اتصال معکوس ورودی: خیر
28. خروجی جلوگیری از جریان معکوس: خیر
29. روش سیم کشی: کانکتور آمفنول
دیتا شیت ماژول مبدل ولتاژ DC-DC کاهنده 10 آمپر
———————————————-
Features:
1. Fixed turn lamp current is 0.1 times the current value
( Used to identify whether the battery is fully charged When charging).
2. Made from a dedicated benchmark IC and high-precision current sensing resistor, proving a more stable
constant current, (when 20°C to 100°C constant current 1A, temperature drift less than 1%).
Particularly suitable for LED driver.
3. High output current, the max output current can reach 10A.
4. Four high frequency capacitance, can lower output ripple, enhance the work stabilization.
5. Double heat sink design. MOS schottky diode independent heat sink,which heat dissipation is good,
and won’t affect each other.
6. Using large size Sendust Core and double pure copper wiring, improve working efficiency, reduce fever.
7. 3296 multiturn potentiometer,high accuracy voltage and current regulation, good stability.
8. Double color lamp, working condition be clear at a glance
9. Voltage and current are adjustable,wich effect is good.
Applications:
1. High-power LED driver.
2. Lithium battery(or lead accumulator) charge.
3. Vehicle-mounted power supply.
4. Low voltage system power supply.
5. 6V, 12V, 14V, 24V battery charge.
6. On-board laptop power supply.
7. regulated power supply.
8.Low voltage power supply system.
Battery charge:
1. Make sure of the battery float voltage and charging current that you need, as well as the input voltage of the module.
2. Adjust the constant voltage potentiometer and adjust the output voltage to about 5V.
3.Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the
current potentiometer to make the output current to the expected charging current value.
4. Adjust the constant voltage potentiometer to make the output voltage reaches the float voltage.
5. Connected to the battery, try to charge.
(1,2,3,4 steps to connect the power module input,output no-load does not connect battery.)
LED constant current drive:
1. Make sure the operating current and Max operating Voltage of the LED you need to drive.
2. Adjust the constant voltage potentiometer, adjust the output voltage to about 5V.
3. Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current
potentiometer to make sure the output current to the expected LED operating current.
4. Adjust the constant voltage potentiometer to make the output voltage reach the maximum LED operating voltage.
5. Connect LED, test.
(1,2,3,4 steps to connect the power module input, output No-load does not connect LED.)
